High Shear Granulator for granulation in a low position  High Shear Granulator for discharge in a high position

Introduction：

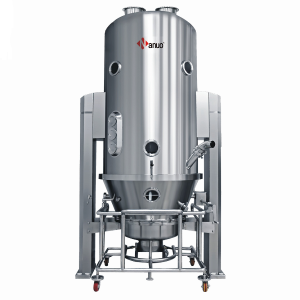

CCS Lifting Integrated Granulation System is a patented technology product independently developed by our company. NANO innovatively adds lifting function for high shear granulator system, matching with fluid bed granulator.

Working Principle：

The system consists of a high shear granulator and a fluid bed dryer, equipped with a liquid supply system and a filtration system. During the operation, the high shear granulator feeds and granulates in a low position. When product is discharged, the high shear granulator is lifted to a high position, and its retractable discharge conveying pipeline is automatically docked to the inlet of the fluid bed to realize gravity discharge.

Features：

■ High shear granulation system can be raised and lowered
■ The product transfer is completely closed. The conveying pipeline automatically connects to achieve material transport, avoiding material accumulating and blocking.
■ Compact installation, small footprint, reducing investment and operating costs.
■ Granulating process is monitored digitally and process parameters are displayed on HMI and recorded, complying with cGMP requirement concerning process tracking and traceability.
■ Intelligent and modular granulation system design concept enables the great feasibility of different products production.
■ Cleaning time is reduced due to the application of automatic CIP system.

Automatic docking

Comparison between CCS Lifting Integrated Granulation System and conventional
CCS Granulation System in workshop

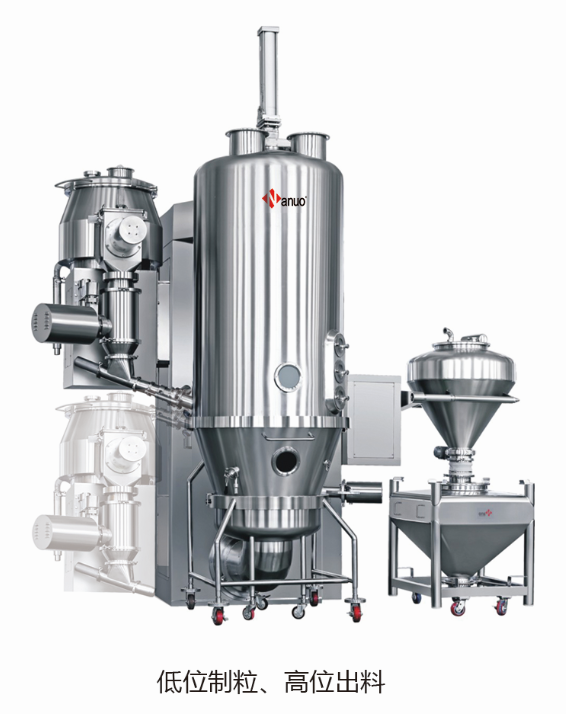

Granulation in a low position
and discharge in a high position

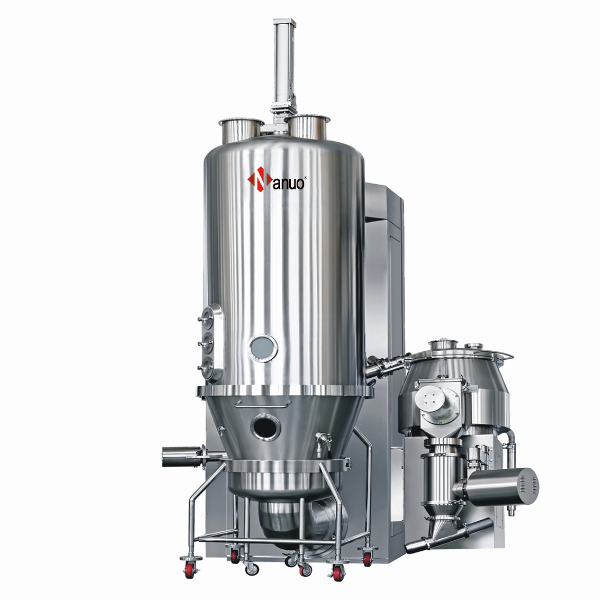

Conventional CCS Granulation System with a high platform

CCS Lifting Integrated Granulation System is compatible with split type butterfly
valve to feed in a closed manner.

PPL Closed Split Type Butterfly Valve integrated with
CCS Lifting Integrated Granulation System

PPL Closed Split Type Butterfly Valve automatically docked with
CCS Lifting Integrated Granulation System
