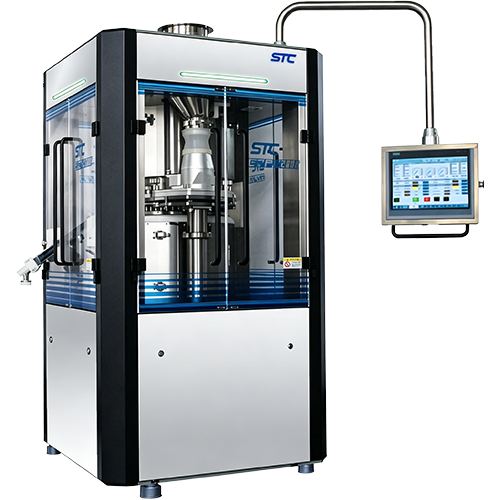

GZPK2000 Series Full-Automatic Single-Discharge High-Speed Rotary Tablet Press
Model: GZPK2000
GZPK2000 Series Full-Automatic Single-Discharge High-Speed Rotary Tablet Press
- Introduction

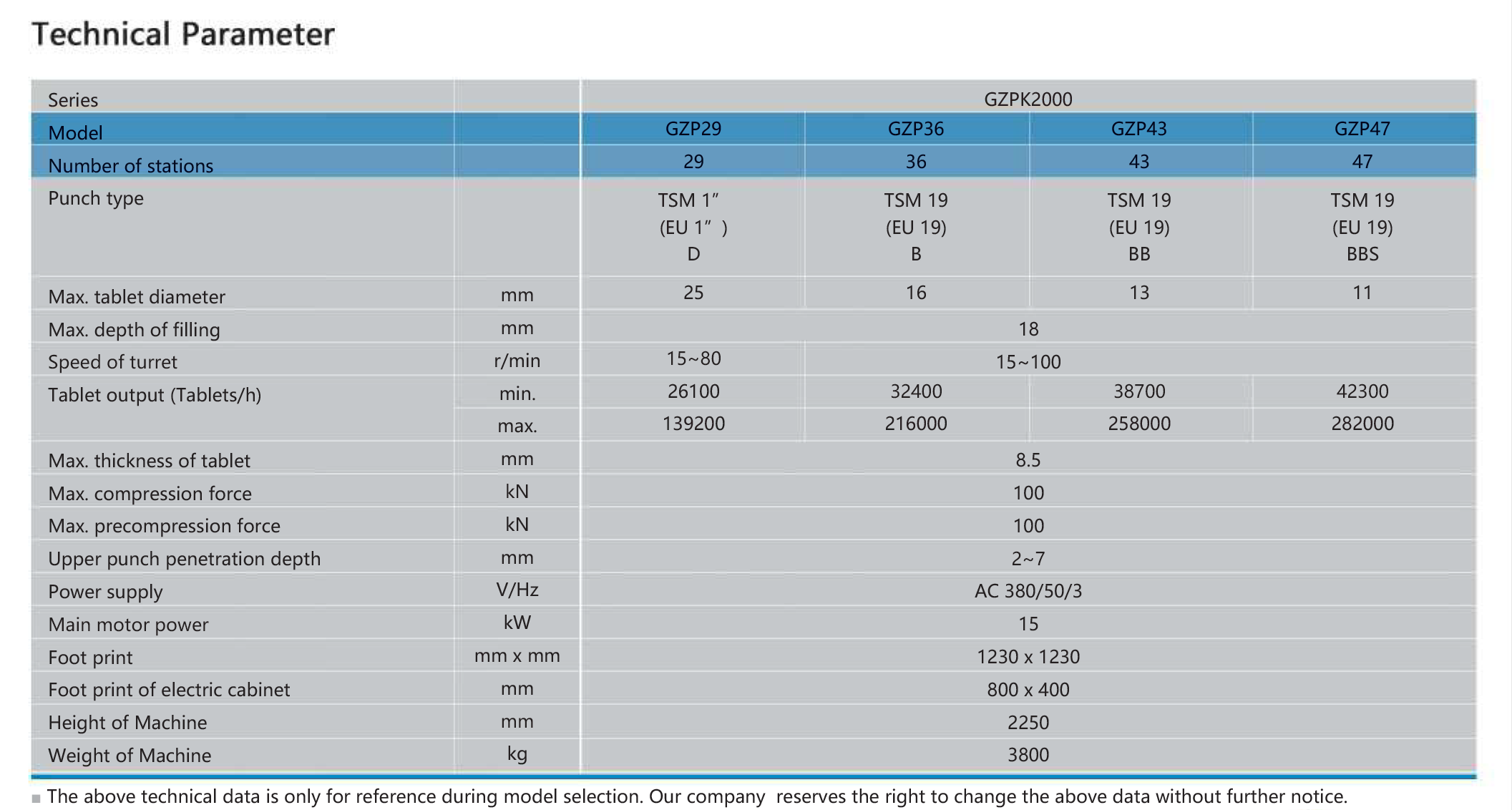

- Technical Parameters
Features
■Developed with proprietary intellectual property and protected by five patents.
■High-speed operation with single-sided tablet discharge for high production output.
■Both main and pre-compression forces reach up to100kN.
■Four interchangeable turret specifications allow rapid changeover,enabling one machine to accommodate different product manufacturing requirements while supporting CIP(Clean-in-Place) processes.
■Equipped with an oversized Siemens touchscreen interface for fully automatic real-time computer control.
■Handwheel-free operation,utilizing an internationally recognized servo control system for precise measurement and control of filling depth and tablet thickness,combined with a renowned German pressure sampling system to achieve tablet weight accuracy up to ±1.5%.
■Incorporates a variable-frequency drive control system from Mitsubishi Electric,providing stable and reliable speed regulation.
■Four-column structure combined with middle and upper wall plate design ensures high compression strength and stable machine operation.
■Equipped with washable feeders for convenient disassembly and cleaning.
■Compliant with U.S. federal regulation 21 CFR Part11,supporting electronic signatures and electronic records.
■Designed in compliance with U.S.FDA and EU GMP requirements.
■Reaerved TCP/IP communication interface supporting OPC UA industrial IoT protocol standards.
■Optional powder compression device available.
■Developed with proprietary intellectual property and protected by five patents.
■High-speed operation with single-sided tablet discharge for high production output.
■Both main and pre-compression forces reach up to100kN.
■Four interchangeable turret specifications allow rapid changeover,enabling one machine to accommodate different product manufacturing requirements while supporting CIP(Clean-in-Place) processes.
■Equipped with an oversized Siemens touchscreen interface for fully automatic real-time computer control.
■Handwheel-free operation,utilizing an internationally recognized servo control system for precise measurement and control of filling depth and tablet thickness,combined with a renowned German pressure sampling system to achieve tablet weight accuracy up to ±1.5%.
■Incorporates a variable-frequency drive control system from Mitsubishi Electric,providing stable and reliable speed regulation.
■Four-column structure combined with middle and upper wall plate design ensures high compression strength and stable machine operation.
■Equipped with washable feeders for convenient disassembly and cleaning.
■Compliant with U.S. federal regulation 21 CFR Part11,supporting electronic signatures and electronic records.
■Designed in compliance with U.S.FDA and EU GMP requirements.
■Reaerved TCP/IP communication interface supporting OPC UA industrial IoT protocol standards.
■Optional powder compression device available.
