Introduction

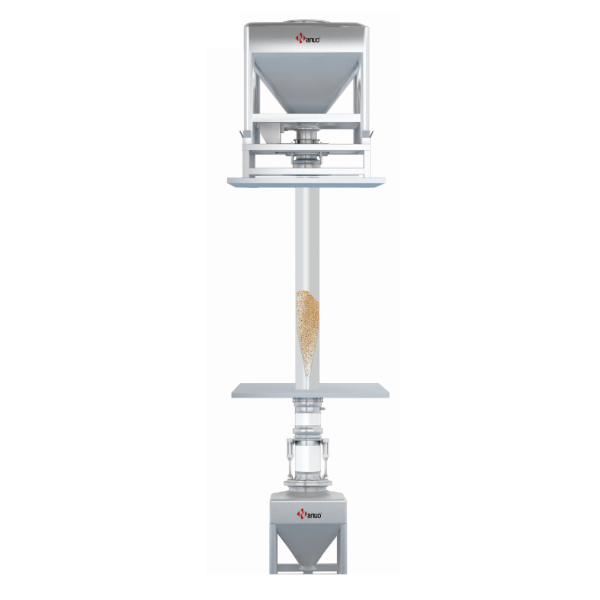

SYZ discharge station system is suitable for vertical conveying of powder and granular materials. Dust-free operation to realize the pipeline transportation of materials be­tween floors. The equipment mainly inclues PPL dust-free feeding station, support, inlet end, hose, pipeline, joint and exhaust end.

Working Principle

When working, connect the silo containing materials with this discharge station. First open the control valve at the inlet end to inject compressed air into the device, exhaust the air in the hose and PE pipe, open the discharge valve, and gradually fill the material into the PE pipe under the action of gravity. At this time, the inlet valve and exhaust valve adjust the inlet and exhaust air flow and pressure under the control of the program. The materials in the PE pipe are gradually and uniformly trans­ported downward to the receiving container under the double action of its own gravity and the air pressure outside the PE pipe (hose), so as to avoid the phenomenon of material layёring and pouring impact caused by the acceleration of material falling under the separate action of gravity.

Features
